Ruckus Self Service portal for Guest access

Ruckus brought in the Guest Self Service portal in firmware 9.10.0.0 build 218 – so if you are looking to configure it please install this update first (Check release notes for proper upgrade path). After we are on build 218, lets get configuring.

So the Ruckus Guest self service portal is Ruckus’s first step in creating an “on boarding”  process. It allows administrators to make sure that there is at least some kind of authentication on their guest WLANs. The portal gives guest users the ability to create their own guest pass, and the admin can set many options of the guest pass such as expiration, amount of devices that can be registered with this pass, and how the pass is given to the user – for example you can send it through text, email, just show it to them on the screen, or a combination of all. So this feature is great, and helps admins authenticate guest users with very minimal intervention.

So how do we configure this?

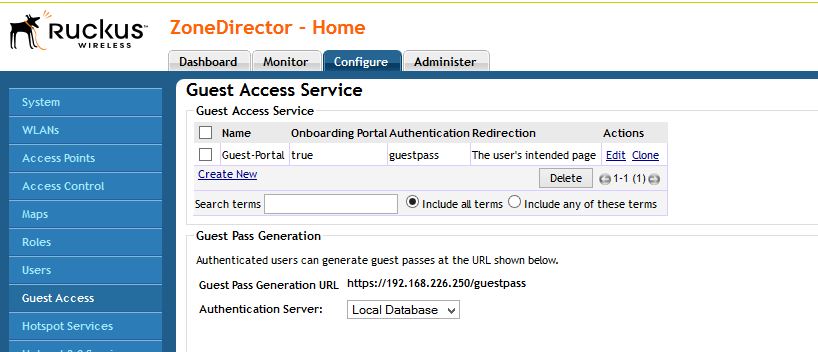

First we need to create a new Guest access policy. This is located under Configure – Guest Access. Create a new portal.

creation-guest

Lets now configure our portal page. A few options that are very important are:

Enable Zero IT Registration from the Guest Portal – Use this if you are also planning to register devices. I was confused by this at first. As you will see you have the option to use guest pass, or register a device. When you register a device you are just using Zero IT as normal to get on the secured network.

Authentication – Use guest pass for this. Since thats the goal.

Next you have a lot of options such as Terms of service and time out.

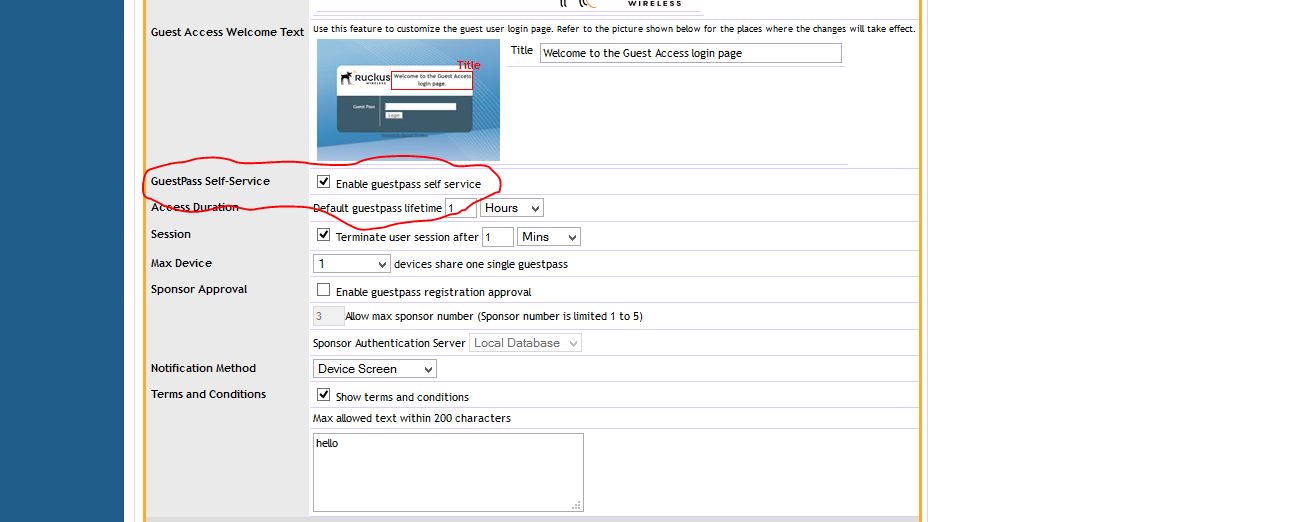

The main box you have to check is the “Guestpass Self-Service” box , you will then get a lot of options to do with that process and how to get the guest pass to the user. A few things to note, if you want to txt them, or send the pass through email you will need to configure a mail server and/or SMS server in the settings of the ZD.

checkbox

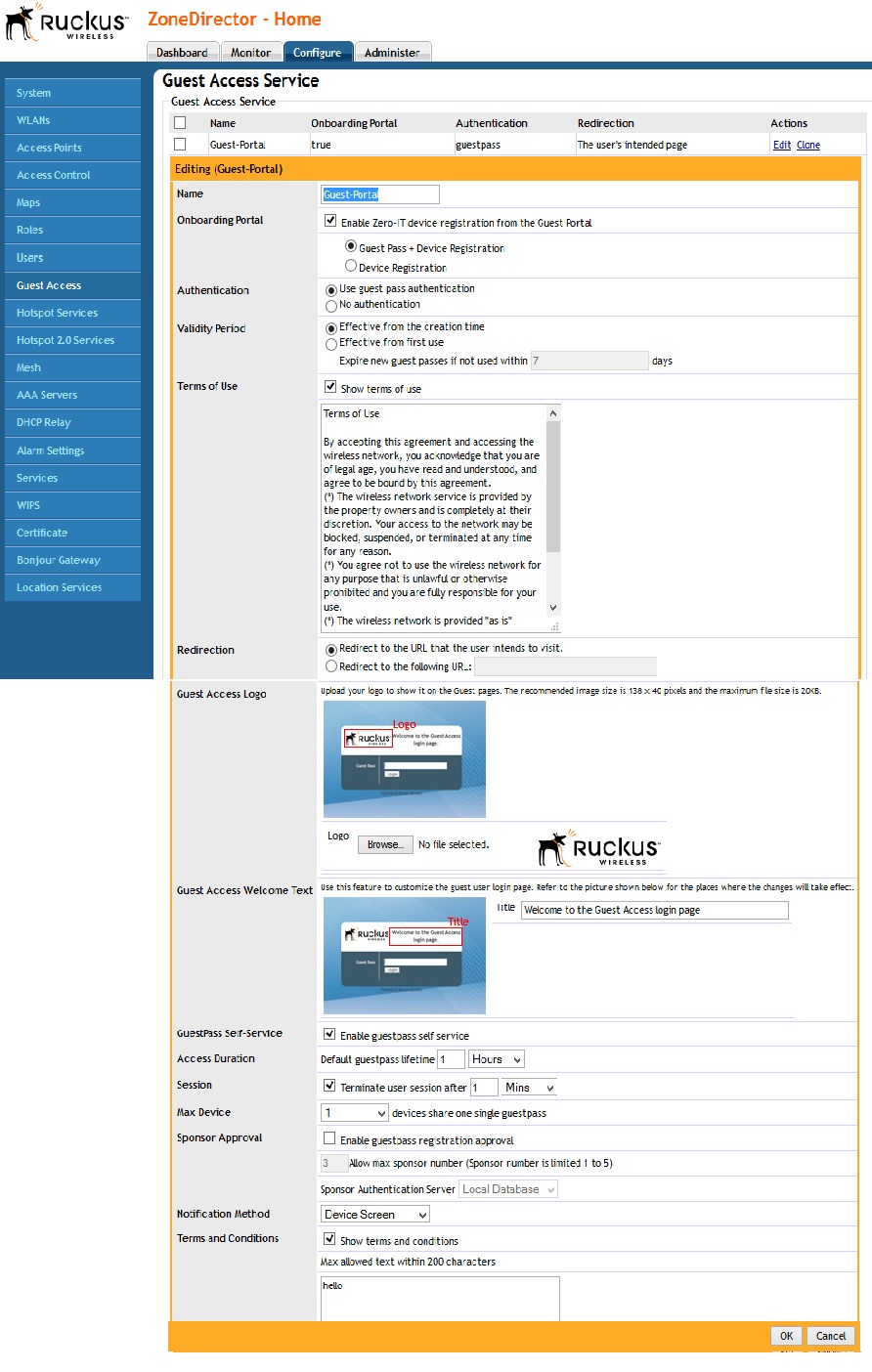

If you notice there is a small “Restricted Subnet access” – Its kind of hidden in my opinion. This is very important. If this is used for guest access more than likely you will want to make sure that guests cannot access internal hosts. This is where that is done. This or the Layer 3 access list. Remember Ruckus does the filtering on the AP, so having to have a ACL on the router is not needed. Below if the full Guest access config.

Settings

That is about it for the Guest portal. Now we need to create a WLAN and use it for our guest access.

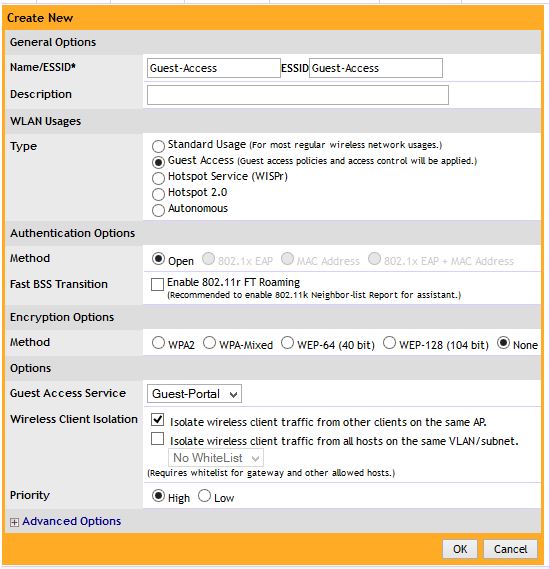

So, lets create a WLAN at configure – WLAN- create a new one.

SSID

Things to note – Select “Guest Access” Then select your Guest access Service portal you created.

Great!! All done, so what happens when you connect?

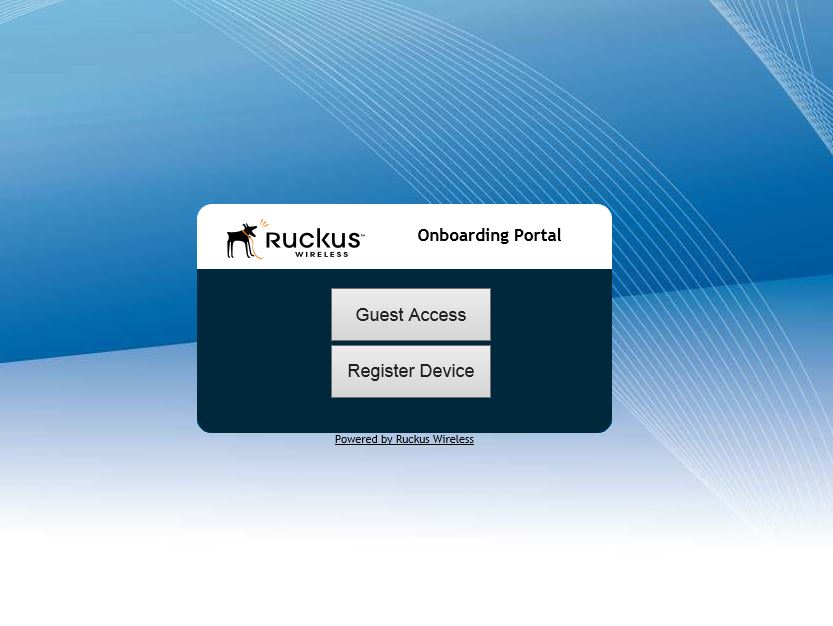

First you will be presented with the on boarding portal that asks if you would like to use Guest Access, or Register a device (Zero-IT).

register

Select “Guest Access”

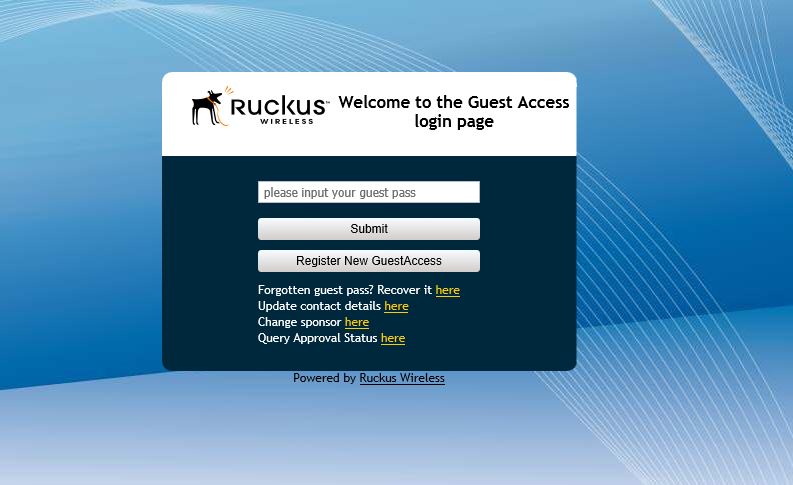

On the next screen it will ask you for your Guest pass, but you don’t have one yet. Select the button to create a new pass. Note that you have the option to Query the status. This is a feature if you want to approve guests of getting a Guest pass before they do.

guest-pass

On the next screen you will be asked to fill out your information.

pass-info

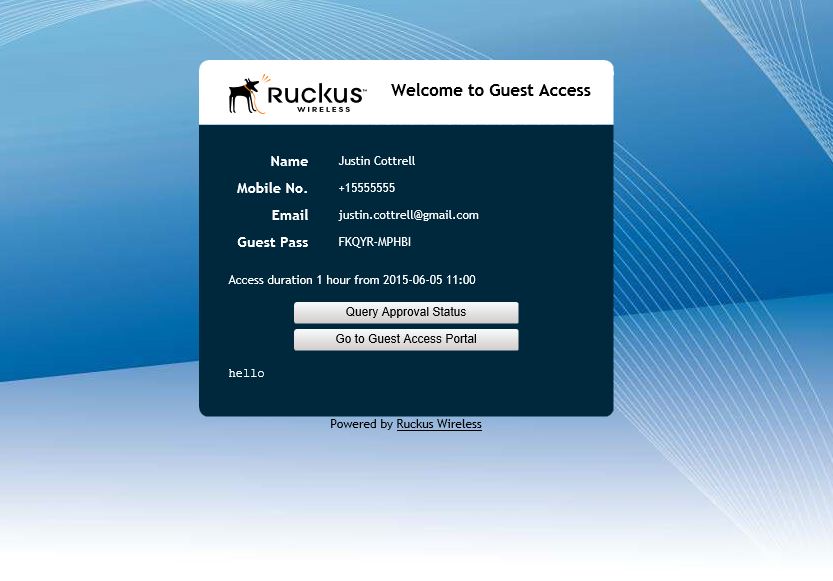

And here you go! you have your guest pass, which is valid for the length of time that you configured in the policy. Copy and keep this key. The ZD will automatically copy the key into the next page for you. Select to go to Guest Access portal.

guest-pass-show

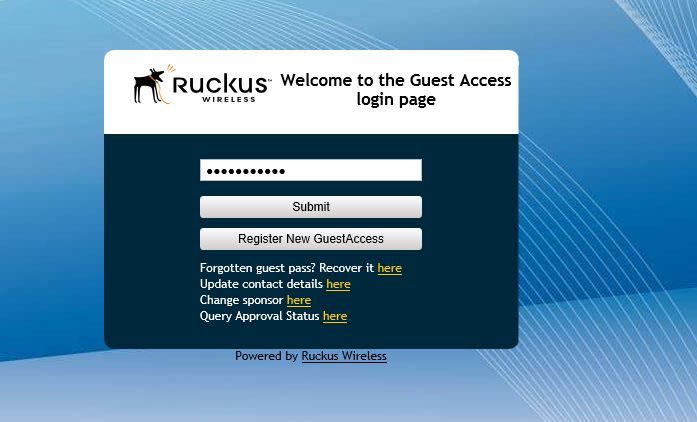

You can see the the ZD copied the key for you. Just Press submit.

last-guess

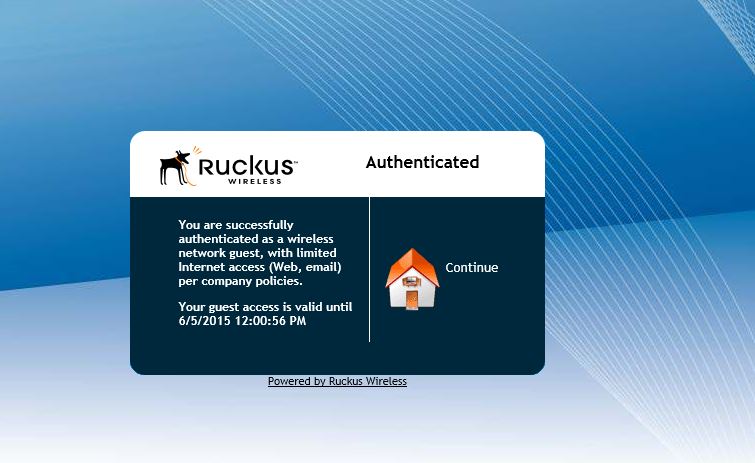

And there we go!! We are online. Ruckus does it again with making getting on Wifi easier. Now we have a built in On boarding portal.

authenticated

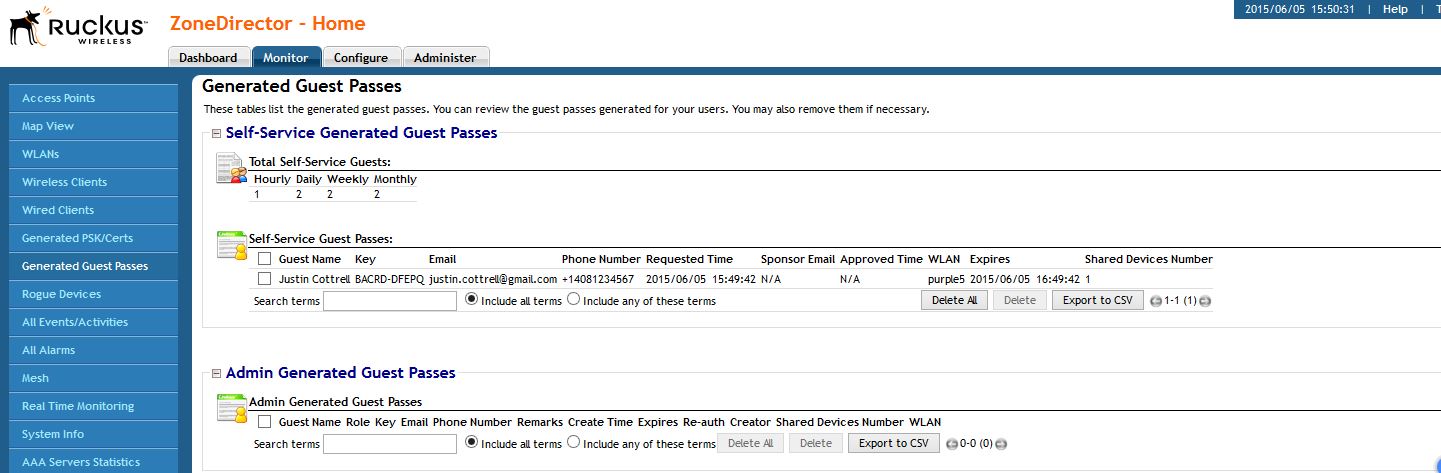

You can view the Guest Pass and its config under Monitor-Guest pass to find out who the GP was assigned to, when it expires, and you can delete them from here as well.

Generated

Ruckus has done a great job giving us a simple but effective way to on board users for Guest and/or internal use.
