Cisco Router IOS Policy-based NAT for VPN traffic

I thought I would blog on this. It could be useful for someone who might have an IOS router instead of an ASA and need to create a IPSEC Site-to-Site VPN to a remote peer, then NAT VPN traffic to a different address or subnet if needed, or the local subnets conflict with each other.

Here is a nice little Visio to kind of show what I am going for with the traffic:

vis

Because of duplicate subnets on both sides, I need to nat traffic going to 172.90.0.20 from 192.168.10.10, otherwise traffic should flow normally. How can I achieve conditional nat? By using a route-map and then natting only the traffic in the Route-map. So, lets get our VPN setup first. Remember, we add the NAT network or host IP to our interesting traffic ACL that will be used to define our Phase2

These are my commands:

ip access-list extended VPN-to-Remote
 permit ip host 10.255.232.10 host 172.20.0.192

crypto isakmp policy 50
 encr 3des
 authentication pre-share
 group 2
 lifetime 28800

crypto isakmp key … address 1.1.1.1 no-xauth

crypto ipsec transform-set Transform esp-3des esp-sha-hmac

crypto map Crypto 6 ipsec-isakmp
 set peer 1.1.1.1
 set transform-set Transform
 match address VPN-to-Remote

That pretty much gets the VPN up and going. Now for the interesting part – we need to create a new ACL, match my private 192.168.10.10 address and the destination address of the remote server, then match that ACL in my Route-map.

ip access-list extended Nat-for-VPN
 permit ip host 192.168.10.10 host 172.20.0.192

route-map VPN-to-REMOTE permit 10
 match ip address Nat-for-VPN
!

Great! So, we now have the route-map created.. so now what? We need to create a NAT statement that references my Route-Map. Then of course with any VPN we need to modify the “NO-NAT” ACL to include the traffic for both the 192.168.10.10, and the 10.255.232.10 to my remote destination.

ip nat inside source static 192.168.10.10 10.255.232.10 route-map VPN-to-HCN extendable

ip access-list extended NO-NAT
 deny   ip host 10.255.232.10 host 172.20.0.192
 deny   ip host 192.168.10.10 host 172.20.0.192

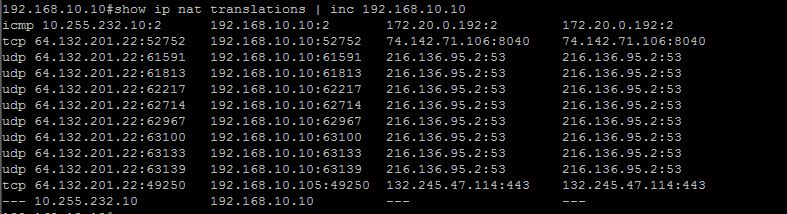

Now, if we try to access the remote side, does it work? Yes it does, but lets check to see if our nat is really working. It is! As you can see, 192.168.10.10 going to 172.20.0.192 is being natted into 10.255.232.10, but all other traffic gets natted out of the WAN interface.

nat1

Lets just check for translations of 10.255.232.10

2

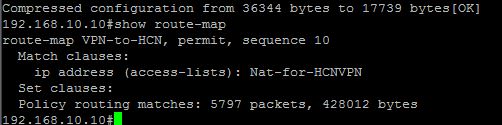

Bingo, everything works great. Lets make sure that we are getting hits on our Route-Map.

route-map

Advertisements

Cisco ASA 9.1+ Static Nat example

Below shows how to configure Static nat for a web server or some kind of application running on a internal host. Basically we are port forwarding port 80 from our public IP of 1.1.1.2 to port 80 of our internal IP at 10.1.1.2. In this example Auto Nat will be used. You could also use Manual nat, I have written another blog entry on this.  This is way different than 8.2 and below. Here we create an object and then modify the object with the Static port forward we want. I

In this example my ASA outside IP is 1.1.1.1, and I want the web server to answer on 1.1.1.2.

object network 1.1.1.2
host 1.1.1.2
exit

object network 10.1.1.2
host 10.1.1.2
nat (inside,outside) static 1.1.1.2 service tcp 80 80

Somethings to note- We could name the objects anything, I just chose to use the actual IP address. For example, you could do the command ” object network Webserver-Outside” and use that name to reference the outside IP address.

Next, if I want to allow access to 10.1.1.2 from the outside world, I will need an ACL.

access-list Outside-In permit tcp any 10.1.1.2 eq 80

access-group Outside-In in interface outside

Notice the internal IP specified in the ACL – that is there on purpose. Instead of referencing the External IP  you now reference the internal.

What if the outside address answering for my web server is the outside IP of the ASA?

No problem, just have to modify that one NAT entry. Instead of the public NAT object we use the “interface” keyword.

object network 1.1.1.2
host 1.1.1.2
exit

object network 10.1.1.2
host 10.1.1.2
nat (inside,outside) static interface service tcp 80 80
