Updating or Rekeying Fortigate certificates

Certificates for VPN, SSL Offloading (if using Load balancing), or a signed device cert expire, we all know this. Up until last week I had never updated a signed certificate, I had just created a new CSR, and rekeyed the cert. Updating the certificate the Fortigate is using is very easy, but I had problems with the syntax so I am documenting it here.

The Fortinet KB article to do it is located here:

https://kb.fortinet.com/kb/documentLink.do?externalID=FD35074

I had an issue following the doc so I though I would clear the water and see if I could help someone down the road. Lets say I have sslvpn.travelingpacket.com that will expire in 2 days – I log into my CA (godaddy in my case) and renew the cert. They send the new cert to me, but what do I do with it…

Open the cert with a text editor – maybe notepad – and copy the cert. you should see —BEGIN CERTIFICATE. Copy everything. Then log into the fortigate VIA cli – Putty or some kind of SSL client is way better for doing this then the web client. Then lets modify the certificate

config vpn certificate local

edit sslvpn (or your cert name)

set certificate “—–BEGIN CERTIFICATE—– mPjDQDYkYHKcTrGa6aH7e1w1uM7kdaBAjyAgM7xcmuTrsCeLYfd+BwIDAQABo4IDTDCCA0gwPQYJKwYBBAGCNxUHBDAwLgYmKwYBBAGCNxUIorRWhO7dYIKtkziB9KY0
>—–END CERTIFICATE—–“

and Press enter – The issues I had was with the quotes. I tried to first do double quotes, and past the cert in the middle – that does not work. Just simply type in the command set certificate and then a double quote and past the cert whole. After its pastes do the ending quote and press enter.

IMPORTANT: That’s it for modifying the cert – but to enact it we have to remove it from whatever we are using it for, and then add it back. That refreshes the cert. So if your using it for SSL-VPN , go to VPN – SSL-VPN settings – and set the server cert to a different one, press apply, and change it back.

Redundant Cisco ASA VPN scenario

Cisco ASA (Pre X series) are still extremely common.

This entry describes a redundant VPN setup of two ISPs on the Branch firewall (Cisco 5505), and one ISP on the Datacenter/hub side (Cisco ASA 5510).

The Branch office  has a cable connection as their primary ISP and a backup 4G Cradle Point. We will be using SLAs to track the internet status of the Cable connection, and a floating static route to control backup route priority.

The idea behind the branch office is that two different Crypto Maps exist, one mapped to each of the interfaces. If the SLA fails and brings down the primary internet the traffic starts going out of the backup connection which has a backup Crypto map applied.  When the primary interface comes back up, then traffic will start going over the crypto map applied to it. Therefore we do not have flip/flop VPNs and it solves the issue of having one crypto map applied to two different interface.



layout

CONFIG

Branch ASA:

interface Vlan2
nameif PRIMARY
security-level 0
ip address 1.1.1.10 255.255.255.0
!
interface Vlan12
nameif BACKUP
security-level 0
ip address 2.2.2.10 255.255.255.0

object-group network CORE-SUBNETS        — Object group for Core subnets
network-object 10.0.0.0 255.255.255.0
network-object 192.168.0.0 255.255.255.0
object-group network BRANCH-SUBNETS    — Object group for Branch subnets
network-object 192.168.18.0 255.255.255.0

object network Any-Cable                                     — NAT For Primary
nat (inside,PRIMARY) dynamic interface
object network Any-Backup                                  — NAT For Backup Internet
nat (inside,BACKUP) dynamic interface

NO-NAT

nat (inside,any) source static BRANCH-SUBNETS BRANCH-SUBNETS destination static CORE-SUBNETS CORE-SUBNETS

SLA config:

sla monitor 123
type echo protocol ipIcmpEcho 8.8.8.8 interface PRIMARY
sla monitor schedule 123 life forever start-time now

route PRIMARY 0.0.0.0 0.0.0.0 1.1.1.1 1 track 2  – The Track statement maps that SLA to the route

route BACKUP 0.0.0.0 0.0.0.0 250     – Floating Static – Makes this a backup route. I set the distance to 250

VPN CONFIG:

access-list VPN-to-CORE permit ip object-group BRANCH-SUBNETS object-group CORE-SUBNETS

crypto ipsec ikev1 transform-set AES256SHA esp-aes-256 esp-sha-hmac

Primary Crypto

crypto map BRANCH_MAP 100 match address VPN-to-CORE
crypto map BRANCH_MAP 100 set peer 3.3.3.1
crypto map BRANCH_MAP 100 set ikev1 transform-set AES256SHA
crypto map BRANCH_MAP 100 set security-association lifetime seconds 28800

crypto ikev1 enable PRIMARY

crypto map BRANCH-MAP interface PRIMARY

BACKUP Crypto MAP

crypto map BRANCH-MAP-BK 100 match address VPN-to-CORE
crypto map BRANCH-MAP-BK 100 set peer 3.3.3.1
crypto map BRANCH-MAP-BK 100 set ikev1 transform-set AES256SHA
crypto map BRANCH-MAP-BK 100 set security-association lifetime seconds 28800
crypto map BRANCH-MAP-BK interface BACKUP

crypto ikev1 enable BACKUP

crypto ikev1 policy 10
authentication pre-share
encryption aes-192
hash sha
group 2
lifetime 86400

Tunnel Group

tunnel-group 3.3.3.1 type ipsec-l2l
tunnel-group 3.3.3.1 ipsec-attributes
ikev1 pre-shared-key password



Core Config:

object-group network CORE-SUBNETS        — Object group for Core subnets
network-object 10.0.0.0 255.255.255.0
network-object 192.168.0.0 255.255.255.0
object-group network BRANCH-SUBNETS    — Object group for Branch subnets
network-object 192.168.18.0 255.255.255.0

NO-NAT

nat (inside,any) source static BRANCH-SUBNETS BRANCH-SUBNETS destination static CORE-SUBNETS CORE-SUBNETS

VPN CONFIG:

access-list VPN-to-BRANCH permit ip object-group CORE-SUBNETS object-group BRANCH-SUBNETS

crypto ipsec ikev1 transform-set ESP-AES-256-SHA-TRANS esp-aes-256 esp-sha-hmac

crypto map outside_map 100 match address VPN-to-BRANCH
crypto map outside_map 100 set peer 1.1.1.10 2.2.2.10              —Notice both IPs
crypto map outside_map 100 set ikev1 transform-set ESP-AES-256-SHA
crypto map outside_map 100 set reverse-route

crypto ikev1 enable outside

crypto map outside_map interface outside

crypto ikev1 policy 10
authentication pre-share
encryption aes-192
hash sha
group 2
lifetime 86400

tunnel-group 1.1.1.10 type ipsec-l2l
tunnel-group 1.1.1.10 ipsec-attributes
ikev1 pre-shared-key password

tunnel-group 2.2.2.10 type ipsec-l2l
tunnel-group 2.2.2.10 ipsec-attributes
ikev1 pre-shared-key password

Fortigate VXLAN Encapsulation over IPSEC

VXLAN is a Layer2 overlay scheme over a Layer 3 network. VXLAN uses MAC Address-in-User Datagram Protocol (MAC-in-UDP) encapsulation to provide a means to extend Layer 2 segments across a layer3 segment. This basically means the layer2 packet gets a VXLAN header applied, then that frame gets encapsulated into a UDP IP packet and sent over to the layer3 network.

In later FortiOS 5.4 firmwares VXLAN (Virtual Extensible LAN) encapsulation was added. This is a great technology that can help connect to sites at layer2 over layer3. Something to take note of – as of FortiOS 5.6.2 – lots of improvements and enhancements to VXLAN encapsulation have been made. For example, vlan trunking works well now. Mutlicast also will traverse the VXLAN!

So far I have set this up for two different clients. Both were situations where we had to have layer 2 stretched for a certain purpose. in the last case it was to two different data centers. Below is the scenario and config of the Fortigates as well as show ARP/MAC from the Cisco switch. Fortinet has some great documentation as well on this feature (Links below).

http://kb.fortinet.com/kb/documentLink.do?externalID=FD38614

http://kb.fortinet.com/kb/documentLink.do?popup=true&externalID=FD40170&languageId=

Below shows our simple layout. The red line indicates the VXLAN encapsulation path. Encapsulation only happens at Fortigate firewalls.

layout

Here is a check lists of things that are needed:

  • Create VXLAN VPN
    • Local encap-local-gw4 is the public address on the local FW
    • encap-remote-gw4 is the peer address of the other side
    • remote-gw is the peer address of the other side
  • Then create a new Switch interface
    • Add both the local network, and VXLAN-VPN interface to this switch
  • Create firewall policies allow traffic

Thoughts and observations:

  • Lowering the MTU of the VXLAN/internal interface might be a good idea. The VXLAN encapsulation adds around 50-bytes. Most Cisco documentation will mention increasing the MTU, but since we are going over the net with this, increasing MTU means lots of fragmentation.
  • No IP address on the Switch interface is needed. Actually I have seen small issues when putting an IP address on the interface.
  • In CLI use the commands below to help get broadcasts (be careful) and ARP to go across.
    • config sys int
      • edit VXLAN
        • set l2forward enable
        • set broadcast-foward enable
        • end
      • end
  • In 5.6.2 VLANs tags will pass through the tunnel

CONFIG

SIDE 1 (60D)

config vpn ipsec phase1-interface
edit “VXLAN”
set interface “wan2”
set peertype any
set proposal aes256-sha1
set encapsulation vxlan
set encapsulation-address ipv4
set encap-local-gw4 1.1.1.1
set encap-remote-gw4 1.1.1.2
set remote-gw 1.1.1.2
set psksecret password
next
end
config vpn ipsec phase2-interface
edit “VXLAN_ph2”
set phase1name “VXLAN”
set proposal aes256-sha1
next
end

config system switch-interface
edit “VXLAN-SWITCH”
set vdom “root”
set member “internal1” “internal2” “VXLAN”
next
end

Lets look at the Switch in the gui

60d-switch

Then lets check out the Firewall Policies

firewall policies

SIDE 2 (60E)

config vpn ipsec phase1-interface
edit “VXLAN”
set interface “wan1”
set peertype any
set proposal aes256-sha1
set encapsulation vxlan
set encapsulation-address ipv4
set encap-local-gw4 1.1.1.2
set encap-remote-gw4 1.1.1.1
set remote-gw 1.1.1.1
set psksecret password
next
end
config vpn ipsec phase2-interface
edit “VXLAN_ph2”
set phase1name “VXLAN”
set proposal aes256-sha1
next
end

Lets look at the Switch in the Gui

60-e interface

Next lets check out the Firewall Policies

fw-60e



Testing

First make sure the VPN is up and working. Then a simple ping test between two devices on the same subnet will be enough to make sure things are working. TCP is always the best way to test . You can also check and make sure that the ARP/MAC address tables on each side show something on the remote side. For example the below shows the ARP/MAC of the Cisco 3650 switch at the Datacenter side (60D).

Datacenter-Stack#show arp

Protocol  Address          Age (min)  Hardware Addr   Type   Interface

Internet  192.168.19.21           0   000c.291c.b2a5  ARPA   Vlan1



Internet  192.168.19.51           0   000c.2918.b8be  ARPA   Vlan1  – 19.51 lives behind the 60E

Datacenter-Stack#show mac address-table
Mac Address Table
——————————————-

Vlan Mac Address Type Ports
—- ———– ——– —–
1 000c.2918.b8be DYNAMIC Gi1/0/1  — Fortinet 60D is connected to gig 1/0/1



Conclusion

Thats it! VXLAN is an open source protocol that is a great datacenter technology. Fortinet makes it very easy to get this up and going within a few minutes. EB

Cisco ASA VPN Spoke to Spoke communication in 8.3 and later

This configuration was in ASA 8.4

Spoke to spoke communication has always been super easy in ASA Site to Site VPNs. As long as your CRYPTO ACL has the remote subnets in it, and NO-NAT Statements are there  everything pretty much works.

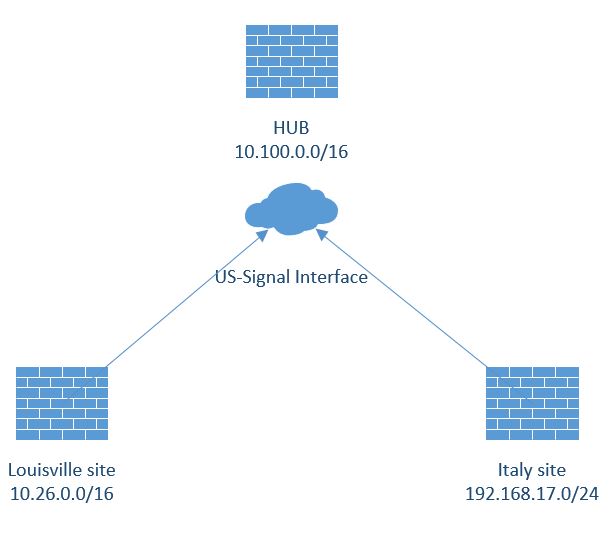

The other day I had an issue getting it to work. After some research I was still struggling. All of my remote sites were in my Crypto ACL, my VPN was up and working to the hub, and any subnet behind the hub would work, but access to other IPSEC tunnels connected behind were not working. See rough sketch of the network below.

diagram

I checked Nat statements, looked great, but my traffic was not flowing. I decided to debug via ASDM this is the error I received.

asdm-error

Routing failed to locate next hop for ICMP then my outside (Louisville), and inside (Italy) address.

Other examples are:

Routing failed to locate next hop for TCP then my outside (Louisville), and inside (Italy) address.

Routing failed to locate next hop for UDP then my outside (Louisville), and inside (Italy) address.

Well, 192.168.17.0/24 does not live inside my firewall – it should be connected to the outside (US-Signal) VIA the VPN. Boom, that’s when it clicked. My nat statement is wrong, well not wrong, just missing. Since these connections are connecting to my outside network, and then going to my outside network – I need to create the nat statement with the source interface and destination interface being US-Signal.

A few things to note about the below statement – I put it at the top of my manual nat entries, and notice the interface – both are US-Signal my outside interface.

object network Louisville-Subnet
 subnet 10.26.0.0 255.255.0.0

object network Italy-Subnet
 subnet 192.168.17.0 255.255.255.0

nat (US-Signal,US-Signal) source static Louisville-Subnet Louisville-Subnet destination static Italy-Subnet Italy-Subnet no-proxy-arp route-lookup

As soon as I added this statement everything worked great. All of my spoke to spoke communication flowed through the hub perfectly.









Cisco Router IOS Policy-based NAT for VPN traffic

I thought I would blog on this. It could be useful for someone who might have an IOS router instead of an ASA and need to create a IPSEC Site-to-Site VPN to a remote peer, then NAT VPN traffic to a different address or subnet if needed, or the local subnets conflict with each other.

Here is a nice little Visio to kind of show what I am going for with the traffic:

vis

Because of duplicate subnets on both sides, I need to nat traffic going to 172.90.0.20 from 192.168.10.10, otherwise traffic should flow normally. How can I achieve conditional nat? By using a route-map and then natting only the traffic in the Route-map. So, lets get our VPN setup first. Remember, we add the NAT network or host IP to our interesting traffic ACL that will be used to define our Phase2

These are my commands:

ip access-list extended VPN-to-Remote
 permit ip host 10.255.232.10 host 172.20.0.192

crypto isakmp policy 50
 encr 3des
 authentication pre-share
 group 2
 lifetime 28800

crypto isakmp key … address 1.1.1.1 no-xauth

crypto ipsec transform-set Transform esp-3des esp-sha-hmac

crypto map Crypto 6 ipsec-isakmp
 set peer 1.1.1.1
 set transform-set Transform
 match address VPN-to-Remote

That pretty much gets the VPN up and going. Now for the interesting part – we need to create a new ACL, match my private 192.168.10.10 address and the destination address of the remote server, then match that ACL in my Route-map.

ip access-list extended Nat-for-VPN
 permit ip host 192.168.10.10 host 172.20.0.192

route-map VPN-to-REMOTE permit 10
 match ip address Nat-for-VPN
!

Great! So, we now have the route-map created.. so now what? We need to create a NAT statement that references my Route-Map. Then of course with any VPN we need to modify the “NO-NAT” ACL to include the traffic for both the 192.168.10.10, and the 10.255.232.10 to my remote destination.

ip nat inside source static 192.168.10.10 10.255.232.10 route-map VPN-to-HCN extendable

ip access-list extended NO-NAT
 deny   ip host 10.255.232.10 host 172.20.0.192
 deny   ip host 192.168.10.10 host 172.20.0.192

Now, if we try to access the remote side, does it work? Yes it does, but lets check to see if our nat is really working. It is! As you can see, 192.168.10.10 going to 172.20.0.192 is being natted into 10.255.232.10, but all other traffic gets natted out of the WAN interface.

nat1

Lets just check for translations of 10.255.232.10

2

Bingo, everything works great. Lets make sure that we are getting hits on our Route-Map.

route-map

Pushing DNS Suffix to Fortigate SSL VPN

After setting up a SSL VPN tunnel, one of the biggest complaints I get is “I cannot get to my shares”. This is because the Domain suffix has not been pushed out to their tunnel interface. This is easy to remedy, but seems to be in CLI only.

Within cli you have many options under the ssl vpn config that are not presented in the GUI.

You can edit the VPN tunnel with the command:

config vpn ssl settings

Here are a list of all the settings:


as you can see, the dns-suffix is an option, as well as DNS servers.

The Suffix option is not presented in the GUI, but the dns servers are.

The command to set the suffix is:

set dns-suffix corp.local

end

Make sure your DNS servers are also set for your internal network and it should now work without a problem.

Cisco ASA IPSEC site to site VPN IOS 8.3+

There are multiple parts to the IPSEC SIte-to-Site VPN config.

– Create access list to specify what will be encrypted

– Create access list to specify what should go over the VPN, and not be natted

– Create Phase 1 (IKE) settings and apply it to the selected interface.

– Create our transformation set (what encryption settings we will use for phase 2).

– Create Phase 2 (ESP) settings otherwise known as a Crypto map.

– Apply Crypto map settings specifying interface.

– Create the tunnel object for peer.



Config:

ASA 1 Core

Create Objects

First create the objects representing what will be found on each side of the VPN.

config t

object network Local-Subnet
 subnet 10.100.1.0 255.255.255.0

object network Remote-Subnet
 subnet 10.100.2.0 255.255.255.0



Encryption Access-list

Next I will create the Access list to tell the firewall what to Encrypt

access-list VPN-to-Remote extended permit ip object Local-Subnet Remote-Subnet

Now we need to make sure traffic is not being forwarded out of our WAN interface, and that the firewall knows to send it over the VPN. We do this with a “No-Nat” statement. This is different than what it once was in 8.2 and below. We will specify this with a different kind of nat statement.

No NAT

nat (inside,outside) source static Local-Subnet Local-Subnet destination static Remote-Subnet Remote-Subnet



IKE Settings

Now its time for the VPN settings!

First lets create our IKE settings and enable it on the outside interface.

crypto ikev1 enable outside
crypto ikev1 policy 1
 authentication pre-share
 encryption 3des
 hash sha
 group 2
 lifetime 86400



Create the IPSEC transformation

crypto ipsec ikev1 transform-set transfrom esp-3des esp-sha-hmac



Crypto MAP (Phase 2)

Now lets create our Crypto map and put it all together.

crypto map VPN 10 match address VPN-to-Remote
crypto map VPN 10 set pfs
crypto map VPN 10 set peer 1.1.1.2
crypto map VPN 10 set ikev1 transform-set transfrom
crypto map VPN 10 set security-association lifetime seconds 28800
crypto map VPN 10 set security-association lifetime kilobytes 4608000

There are a few optional settings like the lifetime, by default its 28800. In this config I am just making it known that’s what its set on. Also you can set “reverse-route” which will add the route to the remote subnet into the routing table. This way you can push it out in a routing protocol.

We will also need to apply the Crypto map to the interface.

crypto map VPN interface outside



Tunnel Group/PSK

Our last step is to create the tunnel group with our Peer IP/DNS name and set the PSK.

tunnel-group 1.1.1.2 type ipsec-l2l
tunnel-group 1.1.1.2 ipsec-attributes
 ikev1 pre-shared-key presharedkey



Below is the config for the Remote side

config t

object network Local-Subnet
 subnet 10.100.2.0 255.255.255.0

object network Core-Subnet
 subnet 10.100.1.0 255.255.255.0

access-list VPN-to-Remote extended permit ip object Local-Subnet Core-Subnet

nat (inside,outside) source static Local-Subnet Local-Subnet destination static Core-Subnet Core-Subnet

crypto ipsec ikev1 transform-set transfrom esp-3des esp-sha-hmac

crypto ikev1 enable outside
crypto ikev1 policy 1
 authentication pre-share
 encryption 3des
 hash sha
 group 2
 lifetime 86400

crypto map VPN 10 match address VPN-to-Core
crypto map VPN 10 set pfs
crypto map VPN 10 set peer 1.1.1.1
crypto map VPN 10 set ikev1 transform-set transfrom
crypto map VPN 10 set security-association lifetime seconds 28800
crypto map VPN 10 set security-association lifetime kilobytes 4608000

crypto map VPN interface outside

tunnel-group 1.1.1.1type ipsec-l2l
tunnel-group 1.1.1.1 ipsec-attributes
 ikev1 pre-shared-key presharedkey

Fortigate Fortios 5.0 SSL VPN Configuration

The best information available for anything fortinet is always found at docs.fortinet.com. This entry will show the needed steps to create a SSL VPN via the web interface.

Creating the SSL VPN has many working parts that come together to make one of the best Remote access VPNs out there. In this example we are creating a Split tunnel VPN, and enabling Tunnel mode.

The SSL VPN is one of the best features of the device, it has an open license, so you can have as many people connect as the device hardware supports. No crazy licensing for SSL VPN as with Cisco and Sonicwall. You can also utilize the VPN to get select information to users based on their AD security group. For example if you have a business with users traveling all the time, you might have a certain portal for one group of users and have their internal bookmarks and file shares, and completely different portal for office staff users.  Another great benifit is in the protocol itself, SSL is almost never blocked by outbound firewall policies. A lot of companies (hotels, hospitals) and educational institutions block IPSEC from leaving the network which stops your remote access VPN from connecting.

Steps:

1. Create Address object for SSL Subnet and Internal networks

2. Create route for new subnet

3. Create Users/User group for user authentication

4. Config the VPN Portal

5. Config the VPN settings

6. Create the SSL VPN policy, including the projected subnet for Split Tunnel.

7. Create policy to allow traffic from the Lan to SSL, and from SSL to Lan.

1. Create Address object for SSL Subnet and Internal networks

We will create an address object with the Subnet of our SSL VPN clients. I would recommend using a crazy private IP subnet as to not conflict with Home/work local subnets.

SSL-address

Then we need to create another object for our Protected subnet. This is our internal network that we want the remote user to be able to access. If there are multiple subnets it might be better to add an address object group.

internal-address

2. Create route for new VPN subnet

Since the SSL VPN is a “interface” we will route our subnet across of it. Notice our device is ssl.root, and that removes our needed gateway.

SSL-Route

3.  Create Users/User group for user authentication

There are many different ways to configure authentication within the device. You can authenticate VPN users against LDAP, Radius, or local accounts. In this example I am just using local accounts, but using LDAP or Radius is a much better option. You can use just individual users, or groups to authenticate to within the VPN policy. I would go ahead and create a User group so that you can add any local, radius, or ldap users into it in the future.

usergroup

I am creating a user group call SSL_VPN and in this case its just local. If I wanted to add a LDAP/Radius server to authenticate against, I could just add the remote server. If I wanted to get even more specific and say authenticate against a security group within LDAP I would just modify the remote server portion of the user group to add that.

4. Config the VPN Portal

The portal is the landing page of the SSL VPN. It is a great place to add book marks, shortcuts for RDP, or info for users. For example, we have an internal sharepoint site for users, by placing a link on the portal, users they just have to click and Whola, instant access. This is great because installing the VPN client which allows tunnel mode requires admin access to the PC. If a user is traveling or at a hotel they might not have this access. Other great uses are RDP session, and file shares. Both will launch in a Java applet window and allow you access to RDP/SMB.

SSL-Portal

We are using the “Full-access” Portal, this is just a name. I added the IP Pool for the clients to get tunnel addresses. You can customize the page to any specification. A note, you can also fully edit your VPN login page to reflect your company logo, etc. You can do this by adding in the feature under system – admin- features and enabling it.

5. Config the VPN settings

The VPN settings consists of the IP pool, Port used, encryption strength, and of course DNS/WINs servers. If you want to push your domain name so that DNS will resolve to this interface, its a CLI command. I will do another entry on it.

SSL-Config

6. Create the SSL VPN policy, including the projected subnet for Split Tunnel.

This is where we actually allow access from the internet to our VPN portal. It is also where we specify our Protected subnets, which are the subnets injected into the clients routing table. You can also specify what portal certain users will see. For example, if you had a group of teachers who needed to get to the Teacher portal, and an admins group that needs to have a different portal and ACL to get to all servers.

VPN-ACL

Notice we select VPN as type, then incoming interface. The Local protected subnets are what we are pushing into the routing table of our client.

Next create an new Authentication policy.

user-policy

From here select your user group that we created earlier, if you want individual users select those as well. You can also enable UTM if you feel its needed.

Now just save all the settings

7. Create policy to allow traffic from the Lan to SSL, and from SSL to Lan.

For the last step we need to create policies to allow traffic in both directions. By default all traffic is blocked between interfaces int he firewall. The SSL VPN is an interface, so we need to allow traffic to it.

Just create a policy with Source interface being ssl.root, and allow all traffic to your LAN (or however you see is best to secure) and then another policy from LAN to ssl.root.

Thats it! There are some optional configs dealing with Certs on both sides, and much stronger encryption methods.



Notes*

If you have a MPLS, or DMZ interface where you need  VPN clients to access you will have to create another VPN policy going from WAN to – DMZ, or WAN to MPLS and just mirror the WAN-to-lan SSL VPN policy. You will also have to modify the protected subnets with that interfaces network. If anyone has trouble with this feel comment and I will explain better.

On top of that you will need to create more ssl.root to DMZ and DMZ to ssl.root policies to allow access between the interfaces.
