Cisco BGP UnSuppress Maps

Unsupress maps in Cisco can really be a very helpful tool in situations where you might be summarizing a bunch of /24s to maybe a /20, but you need to leak out one of the /24s without summarization, and still advertise the larger summary route.

By default, once you use summarize all networks that fall under your summary route do not advertise any more.  In my situation I was testing ECMP and needed to advertise one /24 to each of my MPLS neighbors, so my hub router could get back on either path. I couldn’t test this with the full /24 due to outage concerns so we had to do this for a /24 that was not used that often. I am not going to show the layout of the Dual MPLS , but just one.

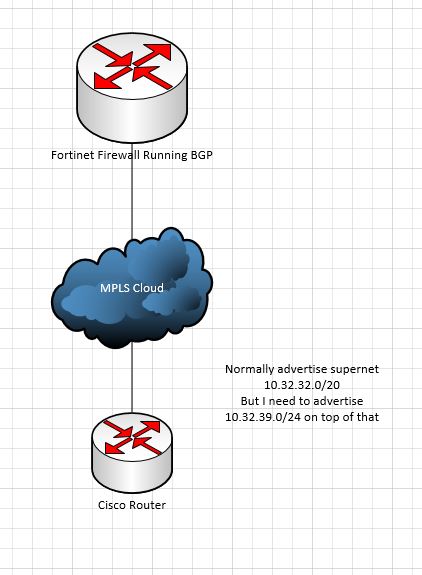

Below shows the topology

layout

Great, now for config on the Cisco Routers.

Steps:

  • Created Prefix list of subnets I need to be unsupressed.
  • Create a new route-map to match those subnets.
  • Add the BGP statement referencing my neighbor with the “unsuppress-map” keyword.
  • clear routes soft, to force a refresh.

My Prefix list name will be UMAP and my route-map will be named UMAP-MAP

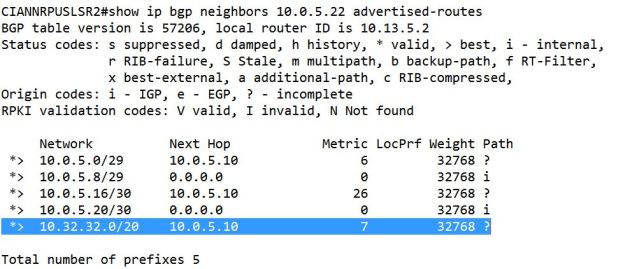

So lets take a look at our advertised routes to my neighbor 10.0.5.22 before making the changes.


Notice that just the /20 is being advertised. Now check out the config below, and lets apply.

config t

ip prefix-list UMAP seq 5 permit 10.32.39.0/24

route-map UMAP-MAP permit 10
 match ip address prefix-list UMAP

router bgp 64551
neighbor 10.0.5.22 unsuppress-map UMAP-MAP

Then clear update BGP

clear ip bgp * soft

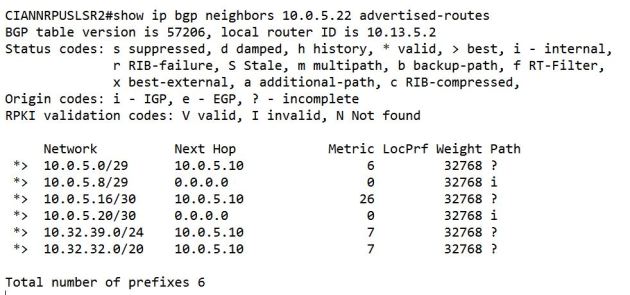

So that’s it for the config.  Lets look at the advertised routes now.

routes-after

Great! we are advertising our /24 and everything is now working perfectly. Unsuppress maps to the rescue!

Fortigate – filtering inbound BGP routes from neighbors, including Default

The other night I had need to stop receiving a default route advertised from my BGP peer. I  also thought it would be helpful for anyone that is needing to do this – and to help myself, since I forget often, to write it up.

First thing we need to do is create a Prefix list to either allow or deny the routes we want. In this case I want to filter out the default route that is being propagated to me.

config router prefix-list

prefix.

The things to note, rule 10 – I match that route exact (default). then in rule 100 I allow any other prefix – hence the “le 32”. that means anything that starts from 0.0.0.0/0-32 and since the 0/0 is blocked already in policy 10- everything else is allowed.

The we need to create our Route map to allow these routes on our in bound direction

config router route-map

Route-map

Then lets apply the route-map to our peer.

config router bgp

bgp

After applying the route-map to the inbound direction we need to clear BGP either soft, or full to make our routing changes take effect.

Run this command to check the BGP advertisements for changes, and synchronize after that.

exe router clear bgp all in soft, or clear both directions (softly) with exe router clear bgp all soft

That should do it, and you will see the default route disappear from the routes learned from your peer. You can also do this to filter routes to any destination network.







Fortigate BGP aggregate address

I like to keep routing tables as clean as possible, and if your IP design and structure allows for very classful subnetting then there is no reason, I see to advertise all of your individual subnets when you could just have one aggregate address advertise out instead. Of course there are numerous reasons why you would not want this, route manipulation, etc.. but not in this case.

At this site my networks all fall into the 10.56.0.0/22 subnet.

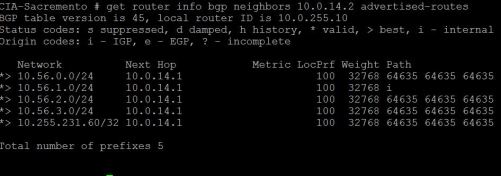

As of now, my networks that are broadcasting to my BGP peer look like this:

adver

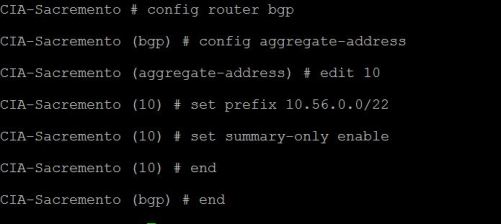

The commands to enable route aggregation is listed below. What happens is that any networks within our aggregation block will stop advertising and in their place one summary route is added and advertised.

commands

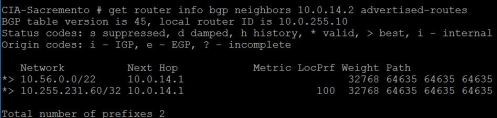

Now a get router info bgp will show that we went down from advertising 5 networks to advertising 2. This might not seem like a big deal, but if you had a large BGP network, with 100 sites like this, then aggregation can make a huge difference in router performance.

after-agg





Fortinet AS Path filtering with Regular Expressions

Recently I had a project where 1 Fortigate had two MPLS networks connected for redundant connections. These two MPLS networks were from different providers. I had a few problems where networks from other peers were transiting through my device to be advertised out to these links. I did not want this to happen. There are many ways to do this exact thing, but what I did was use an AS path filter with regular expressions to find anything passing through my remote peers and block them going out on the opposite peer. The image below will sum up what I just wrote a little better:

Path-filtering

So as with almost all BGP commands on Fortinet – they have to be done through CLI. The following are the commands needed to create the AS-Path list, Create the Route map, then apply the route map to our neighbor. We are using regular expressions to map grab our AS path, you might say what the heck is a regular expression? Here is a link that explains how to put an expression together http://blog.ine.com/2008/01/06/understanding-bgp-regular-expressions/ . If you notice what I am doing “_65000_” This basically says that if 65000 is in the AS Path block it. the _ is a space so my expression reads – Anything before 65000 or after 65000 gets blocked. For example, if you wanted to block routes that originate from 65000 you could do “_65000” or “_65000$” The dollar sign means that is the end of the string, so nothing else beyond that.

config router aspath-list
edit Match-L3
config rule
edit 10
set action deny
set regexp _65000_
end
next

edit Match-WS
config rule
edit 10
set action deny
set regexp _65400_
end
end

config router route-map
edit Block-WS
config rule
edit 10
set match-as-path Match-WS
next
edit 11 — Note- There is a deny all on the Routemap, this rule 11 basically says permit anything else
end
next

edit Block-L3
config rule
edit 10
set match-as-path Match-L3
next — Note- There is a deny all on the Routemap, this rule 11 basically says permit anything else
edit 11
end
end

config neighbor
edit “2.2.2.1”
set capability-default-originate enable
set remote-as 65400
set route-map-out “Block-L3”
set send-community6 disable
next

edit “1.1.1.1”
set remote-as 65000
set route-map-out “Block-WS”
set send-community6 disable
next
end

Now we have to flush those routes, we can do this with the command:

exe router clear bgp ip 1.1.1.1 soft out
exe router clear bgp ip 2.2.2.1 soft out

After you clear you should see a good drop in routes being advertised to those neighbors.

get router infor  bgp neigh 1.1.1.1 advertised-routes



Fortinet BGP local Preference to influence outbound routing

Fortinet like all vendors supports BGP and has many ways to configure it. In this case almost all settings are configured VIA the CLI. In this post I will show how to configure the Local preference attribute to influence what routes a device will take to leave the network. For example, if you have two ISPs, and we use one for primary, and the second for a backup then we would want to change the local preference to make ISP 1 more a better choice.

Changing the local preference of routes from the default 100, to a higher value makes those routes the best choice when leaving the network. Also you can use a prefix-list to change just the preference of one or more routes, you do not have to do all routes advertised by the neighbor.

Steps needed are:

– Get BGP instance configured

– Configure neighbors

– Create route map

– assign preference in Route map

– Apply route map to neighbor

– Clear BGP routes, and check new preferences.



After you get BGP configured VIA CLI or GUI we can start with creating the route map.


You can name the Route map whatever you like, for example if you have two ISPs, you might say ISP-1-Local-Pref. Then modify the rule you want, and change the local preference. Remember the higher the local preference the more preferred.

Command:

config router route-map

edit name

config rule

edit 10

set local-preference X

end

Next we can apply the route-map to the neighbor we want to set preference on.


Once that is configured, we can check the perfernce of the routes with the command:

get router info bgp networks

You might notice that the preference has not changed. This is because we will need to clear the routes first. We can do this with a few different commands:

exe router clear bgp ip x.x.x.x out

This will clear all routes from this neighbor. If this is a live production network, it would be better to run the command:

exe router clear bgp ip x.x.x.x soft out

A soft reset uses stored prefix information to reconfigure and activate BGP routing tables without tearing down existing peering sessions. Soft reconfiguration uses stored update information, at the cost of additional memory for storing the updates, to allow you to apply new BGP policy without disrupting the network. Soft reconfiguration can be configured for inbound or outbound sessions.

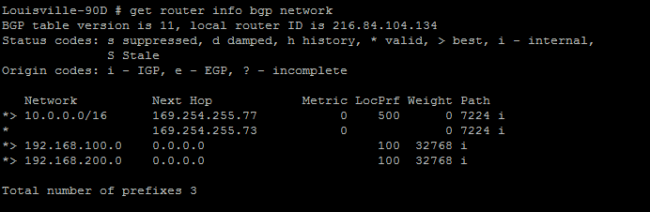

Thats it! now we should see the new preference associated with our routes:


Notice the 500 instead of the default of 100. Everything is working, now all my routes going to the 10.0.0.0/16 network will take the 169.254.255.77 neighbor. Also notice the > symbol. This means it is the best route, and therefore the one put into the routing table. Other routes will not show up in the GUI routing table.

Fortigate BGP AS Path prepending

Docs.fortinet.com is always the best place to get any Fortinet info.

Fortinet like most firewall vendors supports almost all Dynamic routing protocols. BGP is one, the GUI has simple to setup BGP options, but many do not exist in CLI, which might be for the best. In this post I will show how to create a Route-map and prepend the AS path influence ISP/neighbor routing.

First lets talk about why you would want to prepend an AS path. You would want to do this to influence how neighbors get to your routes. For example, if you had two ISPs, or neighbors and wanted to broadcast your routes to both neighbors, but wanted everyone to take neighbor 1 to get to your router, with a backup of Neighbor 2 you could prepend the AS path and make this happen.

BGP is a very deep protocol and there are many different ways to influence routing. Routers will always take the shortest AS path to get to its destination so that is the preferred method for this.

Steps:

– Add BGP neighbors/networks – you can do this in GUI

– In CLI create route-map and use the commands to prepend YOUR AS path

– Assign Route-map to neighbor

– Clear BGP routes.

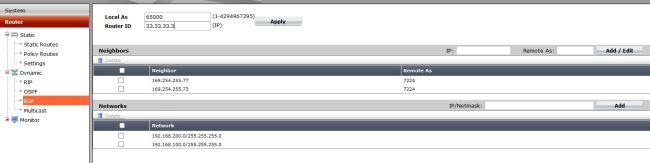

Create BGP in GUI.

This includes our AS number, the Neighbors and their AS numbers, and our networks we are advertising.


Route-map Creation

Lets then drop to CLI and create our Route-map


Commands:

config router route-map

config “Name”  —- create route map

edit rule X — from there you can set your Prepend

set set-aspath “x x x “

set action permit — I did not add this in the image. Routes will be blocked if this is not added.

end

Assigning Route-map

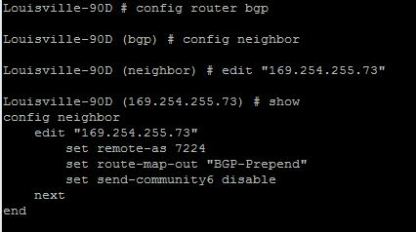

Now lets assign the route map to our neighbor. Since we are wanting to control how routing will get to us, we will apply this route map to outgoing routes.


the command “set route-map-out” is what sets the route map on the outbound routes.

Last but not least, lets clear the IP routes so our prepend takes effect. You can do this through the command:

exe router clear bgp ip x.x.x.x out

This will clear all routes from this neighbor. If this is a live production network, it would be better to run the command:

exe router clear bgp ip x.x.x.x soft out

A soft reset uses stored prefix information to reconfigure and activate BGP routing tables without tearing down existing peering sessions. Soft reconfiguration uses stored update information, at the cost of additional memory for storing the updates, to allow you to apply new BGP policy without disrupting the network. Soft reconfiguration can be configured for inbound or outbound sessions.

Status

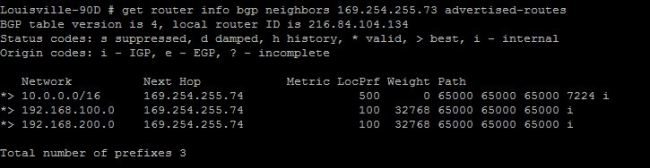

So now we need to take a look at the routes we are sending out to see if our AS has actually be altered. After resetting the peer it might take a minute or two before this shows up correctly.


The command is:

get router info bgp neighbors x.x.x.x advertised-routes

That’s it!

Now we are controlling how devices will get to our networks in a Dual homed situation (two connections to ISPs). The querying devices will always take the lower AS path to get to its destination.
